U60.20 Series
Light series, flanged, ungeared

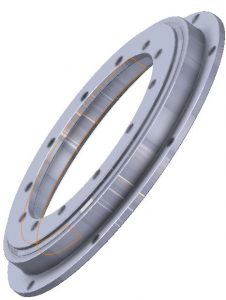

LYRA U60.20 series internal tooth flange type four-point contact ball slew bearings. The rolling elements are steel balls with a diameter of 20mm. The steel ball and the raceway are in four-point contact, and the product is relatively light in weight. It is widely used in industrial automation rotation such as packaging and winding machines.
Series dimensions
LYRA U60.20 series internal tooth flange type four-point contact ball slewing bearings, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | Weight | ||||||||
| LYRA reference | Da | B | U | C | D | Di | La | na | Li | ni | |
| mm | mm | mm | mm | mm | mm | mm | mm | kg | |||
| U60.20.0211 | 318 | 253 | 216 | 213 | 175 | 105 | 290 | 8 Ø14 | 132 | 8 Ø14 | 12 |
| U60.20.0311 | 418 | 353 | 316 | 313 | 275 | 204 | 390 | 8 | 232 | 12 | 19 |
| U60.20.0414 | 518 | 453 | 416 | 413 | 375 | 304 | 490 | 8 | 332 | 12 | 24 |
| U60.20.0544 | 648 | 583 | 546 | 543 | 505 | 434 | 620 | 10 | 462 | 14 | 31 |
| U60.20.0644 | 748 | 683 | 646 | 643 | 605 | 534 | 720 | 12 | 562 | 16 | 36.5 |
| U60.20.0744 | 848 | 783 | 746 | 743 | 705 | 634 | 820 | 12 | 662 | 16 | 43 |
| U60.20.0844 | 948 | 883 | 846 | 843 | 805 | 734 | 920 | 14 | 762 | 18 | 48 |
| U60.20.0944 | 1048 | 983 | 946 | 943 | 905 | 834 | 1020 | 16 | 862 | 20 | 53 |
| U60.20.1094 | 1198 | 1133 | 1096 | 1093 | 1055 | 984 | 1170 | 16 | 1012 | 20 | 62 |
Interchange information
LYRA U60.20 series flange type four-point contact ball slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | ROLLIX | INA | SKF (RKS) | ROTH ERDE | TORRIANI | RIMA | ROTH ERDE | ISB | IMO | LEONESSA |
| U60.20.0211 | ||||||||||
| U60.20.0311 | 2C 0418 00 | NBL20 0314 200 1PPN | 90 20 0311 0 07002 | |||||||
| U60.20.0414 | 23 0411 01 ZZ 00 | VLU 20 0414 N | RKS 23 0411 | 21/520 0 | SD 505 20 00 C | 2C 0518 00 | 230 20 0400 013 | NBL20 0414 200 1PPN | 90 20 0411 0 07012 | |
| U60.20.0544 | 23 0541 01 ZZ 00 | VLU 20 0544 N | RKS 23 0541 | 21/650 0 | SD 650 20 00 C | 2C 0648 00 | 230 20 0500 013 | NBL20 0544 200 1PPN | 90 20 0541 0 07022 | VS 064 ZB00 |
| U60.20.0644 | 23 0641 01 ZZ 00 | VLU 20 0644 N | RKS 23 0641 | 21/750 0 | SD 750 20 00 C | 2C 0748 00 | 230 20 0600 013 | NBL20 0644 200 1PPN | 90 20 0641 0 07032 | VS 074 ZB 00 |
| U60.20.0744 | 23 0741 01 ZZ 00 | VLU 20 0744 N | RKS 23 0741 | 21/850 0 | SD 850 20 00 C | 2C 0848 00 | 230 20 0700 013 | NBL20 0744 200 1PPN | 90 20 0741 0 07042 | VS 084 ZB 00 |
| U60.20.0844 | 23 0841 01 ZZ 00 | VLU 20 0844 N | RKS 23 0841 | 21/950 0 | SD 950 20 00 C | 2C 0948 00 | 230 20 0800 013 | NBL20 0844 200 1PPN | 90 20 0841 0 07052 | VS 094 ZB 00 |
| U60.20.0944 | 23 0941 01 ZZ 00 | VLU 20 0944 N | RKS 23 0941 | 21/1050 0 | SD 1050 20 00 C | 2C 1048 00 | 230 20 0900 013 | NBL20 0944 200 1PPN | 90 20 0941 0 07062 | VS 104 ZB 00 |
| U60.20.1094 | 23 1091 01 ZZ 00 | VLU 20 1094 N | RKS 23 1091 | 21/1200 0 | SD 1200 20 00 C | 2C |
