U11.14 Series
Light series, solid ring, x-roller, ungeared

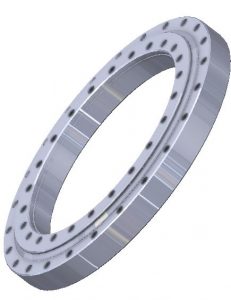

LYRA U11.14 series crossed roller slewing bearings. The rolling elements are cylindrical rollers with a diameter of 14mm arranged in a cross arrangement. The design dimensions are consistent with the LYRA U10.20 series. The cylindrical roller and the raceway are in surface contact, and the steel ball and the raceway are in four-point contact. Compared with the U10.20 series, the LYRA U11.14 series has higher load-bearing capacity and better accuracy.

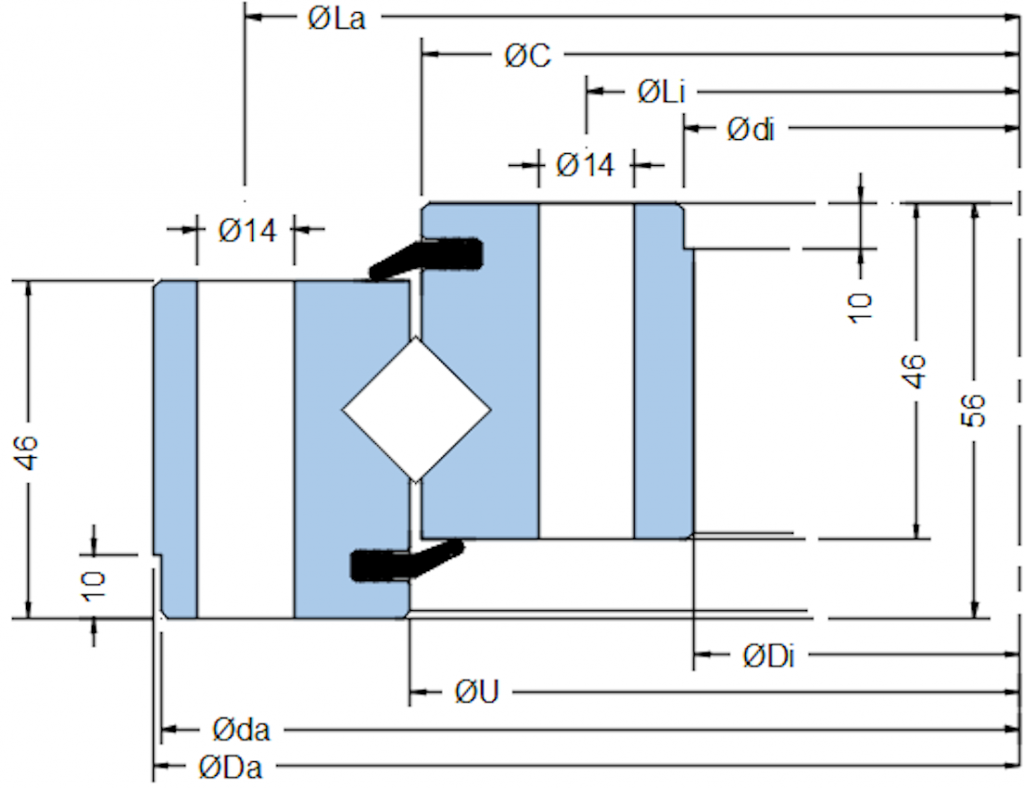

Series dimensions
LYRA U11.14 series crossed roller slewing bearings, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | Weight | ||||||||
| LYRA reference | Da | Di | U | C | da f9 | di H9 | La | na | Li | ni | |
| mm | mm | mm | mm | mm | mm | mm | mm | kg | |||
| U11.20.0414 | 486 | 342 | 416 | 413 | 484 | 344 | 460 | 24 | 368 | 24 | 30 |
| U11.14.0544 | 616 | 472 | 546 | 543 | 614 | 474 | 590 | 32 | 498 | 32 | 40 |
| U11.14.0644 | 716 | 572 | 646 | 643 | 714 | 574 | 690 | 36 | 598 | 36 | 47 |
| U11.14.0744 | 816 | 672 | 746 | 743 | 814 | 674 | 790 | 40 | 698 | 40 | 55 |
| U11.14.0844 | 916 | 772 | 846 | 843 | 914 | 774 | 890 | 40 | 798 | 40 | 63 |
| U11.14.0944 | 1016 | 872 | 946 | 943 | 1014 | 874 | 990 | 44 | 898 | 44 | 70 |
| U11.14.1094 | 1166 | 1022 | 1096 | 1093 | 1164 | 1024 | 1140 | 48 | 1048 | 48 | 82 |
Interchange information
LYRA U11.14 series crossed roller slewing bearings, the size can be customized according to your requirements.
| LYRA reference | INA | SKF (RKS) |
| U11.14.0414 | XSU 14 0414 N | RKS 160.14.0414 |
| U11.14.0544 | XSU 14 0544 N | RKS 160.14.0544 |
| U11.14.0644 | XSU 14 0644 N | RKS 160.14.0644 |
| U11.14.0744 | XSU 14 0744 N | RKS 160.14.0744 |
| U11.14.0844 | XSU 14 0844 N | RKS 160.14.0844 |
| U11.14.0944 | XSU 14 0944 N | RKS 160.14.0944 |
| U11.14.1094 | XSU 14 1094 N | RKS 160.14.1094 |
