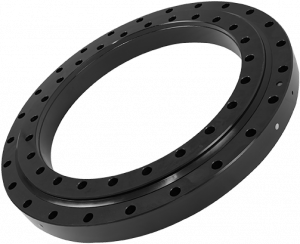

U10/U11 Series
Ungeared
LYRA U10 series slewing bearings are interchangeable with slewing bearings from other manufacturers.
Please tell me your requirements and use professional technology to solve professional problems.
Series dimensions
LYRA U10/U11 series slewing bearing, sizes can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | Weight | |||||||||
| LYRA reference | Da | Di | H | da f9 | dI H9 | La | na | Style | Li | ni | Style | |
| mm | mm | mm | mm | mm | mm | mm | kg | |||||
| U10.14.0140.00 | 192 | 89 | 35 | 173 | 16 Ø14 | B | 107 | 16 Ø9 | A | 4.7 | ||
| U10.14.0179.01 | 234 | 125 | 35 | 214 | 24 Ø11 | A | 144.5 | 20 Ø11 | A | 7 | ||
| U10.14.0179.02 | 234 | 125 | 35 | 232 | 126.5 | 214 | 12 Ø11 | A | 144.5 | 12 Ø11 | A | 6.5 |
| U10.14.0181.00 | 234 | 125 | 25 | 214 | 24 Ø11 | A | 145 | 20-1 Ø11 | A | 5 | ||
| U10.15.0222.01 | 300 | 140 | 36 | 270 | 12 M16 | C | 170 | 12 Ø18 | A | 11 | ||
| U11.12.0222.01 | 300 | 140 | 36 | 270 | 12 M16 | C | 170 | 12 Ø18 | A | 11 | ||
| U11.14.0222.01 | 300 | 142 | 36 | 298 | 142 | 270 | 12 Ø18 | A | 170 | 12 Ø18 | A | 16 |
| U10.20.0260.01 | 329 | 190 | 45 | 328 | 192 | 305 | 16 Ø14 | A | 215 | 16 Ø14 | A | 18 |
| U10.20.0260.02 | 329 | 190 | 45 | 327 | 193 | 305 | 20 Ø14 | A | 215 | 20 Ø14 | A | 16 |
| U11.14.0270.01 | 350 | 190 | 52 | 348 | 192 | 320 | 16 Ø18 | A | 220 | 16 Ø18 | A | 20 |
| U10.20.0325.01 | 380 | 270 | 35 | 378 | 272 | 360 | 24 Ø11 | A | 290 | 24 Ø11 | A | 12 |
| U11.18.0325.01 | 380 | 233 | 55 | 235 | 358 | 24 Ø13 | A | 259 | 28-1 Ø13 | A | 21 | |
| U10.16.0302.01 | 400 | 230 | 55 | 345 | 9 Ø12.5 | B | 259 | 8 Ø12.5 | B | 24 | ||
| U10.22.0307.01 | 403 | 234 | 55 | 235 | 358 | 24 Ø13 | B | 259 | 28-1 Ø13 | A | 24 | |
| U11.20.0307.00 | 403 | 235 | 55 | 235 | 358 | 24 Ø13 | A | 259 | 28-1 Ø13 | A | 24 | |
| U10.20.0342.00 | 440 | 265 | 50 | 438 | 267 | 390 | 16 Ø18 | A | 295 | 16 Ø18 | A | 58 |
| U10.25.0360.00 | 455 | 265 | 71 | 450 | 270 | 420 | 24 Ø18 | A | 300 | 24-1 Ø18 | A | 58 |
| U10.20.0402.00 | 475 | 335 | 45 | 474 | 336 | 450 | 24 Ø14 | A | 360 | 24 Ø14 | A | 27 |
| U10.20.0402.01 | 475 | 335 | 45 | 474 | 336 | 450 | 24 Ø15 | A | 360 | 24 Ø15 | A | 27 |
| U11.25.0400.00 | 500 | 305 | 75 | 495 | 306 | 466 | 30 Ø18 | A | 336 | 30 Ø18 | A | 51 |
| U10.25.0433.00 | 522 | 344 | 55 | 520 | 346 | 490 | 20 Ø18 | A | 376 | 20 Ø18 | A | 41 |
| U10.30.0475.00 | 577 | 382 | 88 | 540 | 24 Ø18 | A | 410 | 24-1 Ø18 | A | 78 | ||
| U11.18.0475.00 | 589 | 383 | 75 | 384 | 540 | 36 Ø16 | A | 410 | 36-1 Ø16 | A | 58 | |
| U10.20.0544.00 | 616 | 472 | 56 | 474 | 590 | 32 M12 | E | 498 | 32 M12 | E | 40 | |
| U10.25.0570.00 | 665 | 475 | 77 | 635 | 18 Ø22 | A | 508 | 18 Ø22 | A | 81 | ||
| U11.20.0574.00 | 700 | 479 | 77 | 480 | 640 | 36 Ø18 | A | 508 | 36 Ø18 | A | 90 | |
| U11.25.0675.01 | 816 | 573 | 90 | 574 | 753 | 18 Ø22 | A | 604 | 18 Ø22 | A | 135 | |
| U11.25.0675.02 | 816 | 573 | 90 | 574 | 753 | 36 Ø22 | A | 604 | 36 Ø22 | A | 125 | |
| U10.30.0741.00 | 848 | 634 | 66 | 820 | 12 Ø18 | A | 662 | 16 Ø18 | A | 82 | ||
| U10.40.0785.00 | 900 | 670 | 86 | 898 | 672 | 860 | 36 Ø22 | A | 710 | 36-1 Ø22 | A | 150 |
| U11.25.0823.01 | 979 | 717 | 100 | 718 | 893 | 36 Ø22 | A | 753 | 36-1 Ø22 | A | 270 | |
| U11.25.0823.02 | 979 | 717 | 100 | 718 | 893 | 28 Ø22 | A | 753 | 28-1 Ø22 | A | 270 | |
| U10.40.0980.00 | 1130 | 845 | 100 | 1130 | 845 | 1070 | 36 Ø26 | A | 890 | 36-1 Ø26 | A | 271 |
| U11.32.0980.00 | 1144 | 869 | 100 | 870 | 1050 | 36 Ø22 | A | 910 | 36 Ø22 | A | 248 | |
| U11.16.1204.00 | 1289 | 1119 | 68 | 1257 | 45 Ø16 | A | 1151 | 45 Ø16 | A | 124 | ||
| U11.16.1314.00 | 1399 | 1229 | 68 | 1367 | 50 Ø16 | A | 1261 | 50 Ø16 | A | 135 | ||
| U11.16.1424.00 | 1509 | 1339 | 68 | 1477 | 54 Ø16 | A | 1371 | 54 Ø16 | A | 146 | ||
| U11.16.1534.00 | 1619 | 1449 | 68 | 1587 | 60 Ø16 | A | 1481 | 60 Ø16 | A | 158 | ||
| U11.16.1644.00 | 1752 | 1536 | 68 | 1708 | 54 Ø16 | A | 1580 | 54 Ø16 | A | 215 | ||
| U11.16.1754.00 | 1862 | 1646 | 68 | 1818 | 60 Ø16 | A | 1690 | 60 Ø16 | A | 228 | ||
| U11.16.1904.00 | 2012 | 1796 | 68 | 1968 | 64 Ø16 | A | 1840 | 64 Ø16 | A | 248 | ||
Interchange
LYRA U10/U11 series slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | Torriani Gianni | ROLLIX | La Leonessa | INA | ISB | SKF/RKS | IMO | BRB |
| U10.14.0140.00 | ||||||||
| U10.14.0179.01 | SD 234 14 00 D1 | VU 14 0179 N | NB1 14 0179 201 1PPN | |||||
| U10.14.0179.02 | NB1 14 0179 200 1PPN | 113 14 0179 10 0 10 | ||||||
| U10.14.0181.00 | 03 0181 07 ZZ 00 | |||||||
| U10.15.0222.01 | 10 12 0222 0 02710 | |||||||
| U11.12.0222.01 | XU 12 0222 | |||||||
| U11.14.0222.01 | 08 0220 05 ZZ 00 | |||||||
| U10.20.0260.01 | SD 329 20 00 D1 | 03 0260 00 ZZ 00 | VS 032 A02 | NB1 20 0260 200 1PPN | 95114 5101 001 | 10 20 0260 0 02448 | 113 20 0260 01 00 20 | |
| U10.20.0260.02 | VU 20 0260 NZT | NB1 20 0260 202 1PPN | 10 20 0260 0 02350 | |||||
| U11.14.0270.01 | 08 0270 04 ZZ 00 | |||||||
| U10.20.0325.01 | VU 14 0325 | 10 16 0325 0 03997 | ||||||
| U11.18.0325.01 | V18 S 079 | |||||||
| U10.22.0307.01 | VS 040 A27 | |||||||
| U11.20.0307.00 | 08 0307 00 ZZ 00 | VS18 S 077 | 92115 5101 001 | 113 20 0307 00 30 10 | ||||
| U10.20.0342.00 | 03 0342 05 ZZ 00 | |||||||
| U10.25.0360.00 | 03 0360 00 ZZ 00 | |||||||
| U10.20.0402.00 | SD 475 20 00 D1 | 03 0402 00 ZZ 00 | 113 20 0402 05 00 10 | |||||
| U10.20.0402.01 | 113 20 0402 02 00 10 | |||||||
| U11.25.0400.00 | 08 0400 00 ZZ 00 | |||||||
| U10.25.0433.00 | SD 522 25 00 B | VU 25 0433 NZT | 113 25 0433 00 00 10 | |||||
| U10.30.0475.00 | 08 0475 08 ZZ 00 | V18 S 082 | ||||||
| U11.20.0574.00 | 08 0574 08 ZZ 00 | |||||||
| U11.25.0675.01 | 08 0675 00 ZZ 00 | V25 S 085 | ||||||
| U11.25.0675.02 | 12229 5101 002 | 133 25 0675 06 30 10 | ||||||
| U10.40.0785.00 | 03 0785 00 ZZ 00 | |||||||
| U11.25.0823.01 | 08 0823 08 ZZ 00 | 22347 5101 001 | 133 25 0823 03 00 10 | |||||
| U11.25.0823.02 | 22302 5707 XX | 133 25 0823 06 30 21 | ||||||
| U10.40.0980.00 | 03 0980 02 ZZ 00 | |||||||
| U11.32.0980.00 | 08 0980 06 ZZ 00 | |||||||
| U11.16.1204.00 | NR1 16 1204 400 1PPN | 160 16 1204 | ||||||
| U11.16.1314.00 | NR1 16 1314 400 1PPN | 160 16 1314 | ||||||
| U11.16.1424.00 | NR1 16 1424 400 1PPN | 160 16 1424 | ||||||
| U11.16.1534.00 | NR1 16 1534 400 1PPN | 160 16 1534 | ||||||
| U11.16.1644.00 | NR1 16 1644 400 1PPN | 160 16 1644 | ||||||
| U11.16.1754.00 | NR1 16 1754 400 1PPN | 160 16 1754 | ||||||
| U11.16.1904.00 | NR1 20 1904 400 1PPN | 160 20 1904 |
