N10.20 series
Light series, internal gear, inch sizes

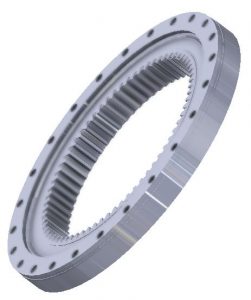

The LYRA N10.20 series mimics the dimension plan of the Kaydon HS6-N.
Series dimensions
Internally toothed four-point contact ball slewing bearing, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | 20 deg stub gear | Weight | |||||||
| LYRA reference | Da | Di | La | na | Li | ni | P | DP | z | Fz Max | |
| in | in | in | in | in | lb.f | lbs | |||||
| N10.20.0411.00 | 20.4 | 12.85 | 19 | 8 | 14.88 | 16 | 13.25 | 4 | 53 | 7883 | 92 |
| N10.20.0541.00 | 25.5 | 17.6 | 24 | 12 | 19.63 | 20 | 18 | 4 | 72 | 7883 | 117 |
| N10.20.0641.00 | 29.5 | 21.6 | 28 | 15 | 23.63 | 24 | 22 | 4 | 88 | 7883 | 148 |
| N10.20.0741.00 | 33.4 | 25.6 | 32 | 15 | 27.63 | 28 | 26 | 4 | 104 | 7883 | 171 |
| N10.20.0841.00 | 37.4 | 29.13 | 35.75 | 18 | 31.5 | 30 | 29.67 | 3 | 89 | 10500 | 205 |
| N10.20.0941.00 | 41.25 | 33.13 | 39.75 | 18 | 35.5 | 32 | 33.67 | 3 | 101 | 10500 | 226 |
| N10.20.1091.00 | 47.18 | 39.13 | 45.62 | 20 | 41.5 | 36 | 39.667 | 3 | 119 | 10500 | 253 |
Interchange information
The LYRA N10.20 series slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | KAYDON | AVON |
| N10.20.0411.00 | HS6 16 N1Z | 716 HB1 |
| N10.20.0541.00 | HS6 21 N1Z | 721 HB1 |
| N10.20.0641.00 | HS6 25 N1Z | 725 HB1 |
| N10.20.0741.00 | HS6 29 N1Z | 729 HB1 |
| N10.20.0841.00 | HS6 33 N1Z | 733 HB1 |
| N10.20.0941.00 | HS6 37 N1Z | 737 HB1 |
| N10.20.1091.00 | HS6 43 N1Z | 743 HB1 |
