E60.32 Series
MEDIUM SERIES, FLANGED, EXTERNAL GEAR

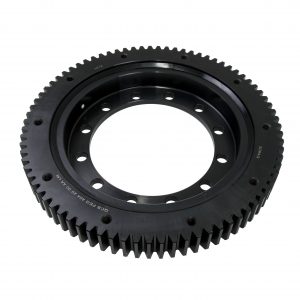

LYRA E60.32 Series large flange type slewing bearing is more portable and flexible than ordinary slewing bearings, lightweight and easy to install. They are mainly used in industrial automation machinery.
Series dimensions
Flange-type external tooth four-point contact ball slewing bearing, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | 20 deg stub gear | Weight | ||||||||||
| LYRA reference | Da | Di | U | C | D | La | na | Li | ni | P | M | z | Fz max | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN | kg | |||||
| E60.32.0955 | 1098 | 805 | 955 | 955 | 893 | 1016 | 30 | 845 | 30 | 1080 | 9 | 120 | 92 | 165 |
| E60.32.1055 | 1200 | 905 | 1055 | 1055 | 993 | 1116 | 30 | 945 | 30 | 1180 | 10 | 118 | 102 | 183 |
| E60.32.1155 | 1300 | 1005 | 1155 | 1155 | 1093 | 1216 | 36 | 1045 | 36 | 1280 | 10 | 128 | 102 | 200 |
| E60.32.1255 | 1400 | 1105 | 1255 | 1255 | 1193 | 1316 | 42 | 1145 | 42 | 1380 | 10 | 138 | 102 | 216 |
| E60.32.1355 | 1500 | 1205 | 1355 | 1355 | 1293 | 1416 | 42 | 1245 | 42 | 1480 | 10 | 148 | 102 | 234 |
| E60.32.1455 | 1600 | 1305 | 1455 | 1455 | 1393 | 1516 | 48 | 1345 | 48 | 1580 | 10 | 158 | 102 | 250 |
Interchange information
The LYRA E60.32 series slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | TORRIANI | ROTH ERDE | ROTH ERDE | IMO | RIMA | ISB |
| E60.32.0955 | E 1100 32 00 C | 110/1100.1 | 281.30.0900.013 | 91.32.0955/0.06115 | 2PE.100.00 | EBL.30.0955.200-1STPN |
| E60.32.1055 | E 1200 32 00 C | 110/1200.1 | 281.30.1000.013 | 91.32.1055/0.06125 | 2PE.120.00 | EBL.30.1055.200-1STPN |
| E60.32.1155 | E 1300 32 00 C | 110/1300.1 | 281.30.1100.013 | 91.32.1155/0.06135 | 2PE.130.00 | EBL.30.1155.200-1STPN |
| E60.32.1255 | E 1400 32 00 C | 110/1400.1 | 281.30.1200.013 | 91.32.1255/0.06145 | 2PE.140.00 | EBL.30.1255.200-1STPN |
| E60.32.1355 | E 1500 32 00 C | 110/1500.1 | 281.30.1300.013 | 91.32.1355/0.06155 | 2PE.150.00 | EBL.30.1355.200-1STPN |
| E60.32.1455 | E 1600 32 00 C | 110/1600.1 | 281.30.1400.013 | 91.32.1455/0.06165 | 2PE.160.00 | EBL.30.1455.200-1STPN |
