E10.25 Series
MEDIUM SERIES,External gear slewing bearing

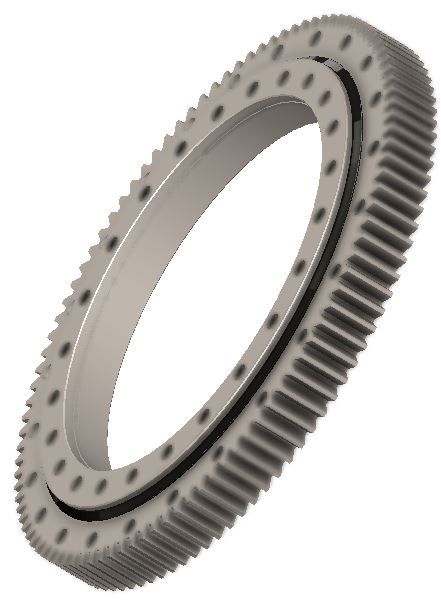

LYRA E10.25 series external gear slewing bearings are light in weight and have large load capacity. They are mostly used for industrial automation machinery rotation.

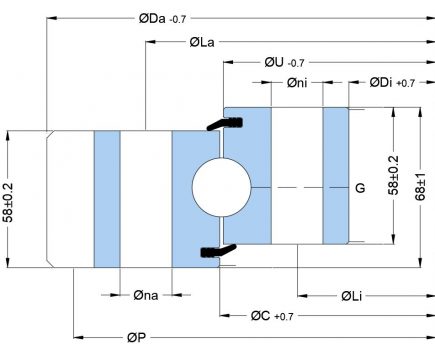

Series dimensions
External tooth four-point contact ball slewing bearing, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | 20 deg stub gear | Weight | |||||||||||
| LYRA reference | Da | Di | U | C | Ua f9 | di H9 | La | na | Li | ni | P | M | z | Fz max | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg | |||||
| E10.25.0455.00 | 590.4 | 355 | 457 | 453 | 455 | 357 | 516 | 18 | 395 | 18 | 576 | 8 | 72 | 81 | 74 |
| E10.25.0555.00 | 694.4 | 455 | 557 | 553 | 555 | 457 | 616 | 20 | 495 | 20 | 680 | 8 | 85 | 81 | 93 |
| E10.25.0655.00 | 798.4 | 555 | 657 | 653 | 655 | 557 | 716 | 24 | 595 | 24 | 784 | 8 | 98 | 81 | 111 |
| E10.25.0755.00 | 898 | 655 | 757 | 753 | 755 | 657 | 816 | 24 | 695 | 24 | 882 | 9 | 98 | 92 | 125 |
| E10.25.0855.00 | 997 | 755 | 857 | 853 | 855 | 757 | 916 | 28 | 795 | 28 | 981 | 9 | 109 | 92 | 145 |
| E10.25.0955.00 | 1096 | 855 | 957 | 953 | 955 | 857 | 1016 | 30 | 895 | 30 | 1080 | 9 | 120 | 92 | 155 |
| E10.25.1055.00 | 1198 | 955 | 1057 | 1053 | 1055 | 957 | 1116 | 30 | 995 | 30 | 1180 | 10 | 118 | 105 | 171 |
| E10.25.1155.00 | 1298 | 1055 | 1157 | 1153 | 1155 | 1057 | 1216 | 36 | 1095 | 36 | 1280 | 10 | 128 | 105 | 186 |
| E10.25.1255.00 | 1398 | 1155 | 1257 | 1253 | 1255 | 1157 | 1316 | 42 | 1195 | 42 | 1380 | 10 | 138 | 105 | 201 |
| E10.25.1355.00 | 1498 | 1255 | 1357 | 1353 | 1355 | 1257 | 1416 | 42 | 1295 | 42 | 1480 | 10 | 148 | 105 | 218 |
| E10.25.1455.00 | 1598 | 1355 | 1457 | 1453 | 1455 | 1357 | 1516 | 48 | 1395 | 48 | 1580 | 10 | 158 | 105 | 233 |

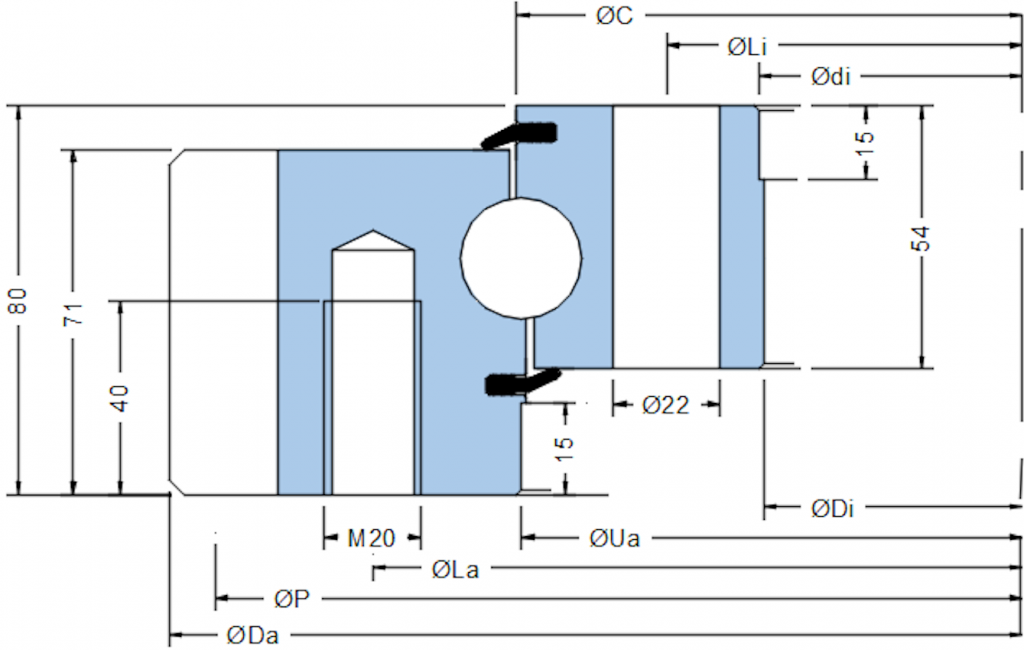

Alternative series sizes
Large, light and thin series slewing bearings can replace SKF series slewing bearings.
| LYRA reference | Da | Di | U | C | Ua f9 | di H9 | La | na | Li | ni | P | M | z | Fz max | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg | |||||
| E10.25.1204.00 | 1338 | 1119 | 1202 | 1206 | 1257 | 45 Ø16 | 1151 | 45 Ø16 | 1310 | 10 | 131 | 88 | 135 | ||
| E10.25.1314.00 | 1448 | 1229 | 1312 | 1316 | 1367 | 50 Ø16 | 1261 | 50 Ø16 | 1420 | 10 | 142 | 88 | 147 | ||
| E10.25.1424.00 | 1558 | 1339 | 1422 | 1426 | 1477 | 54 Ø16 | 1371 | 54 Ø16 | 1530 | 10 | 153 | 88 | 159 | ||
| E10.25.1534.00 | 1668 | 1449 | 1532 | 1536 | 1587 | 60 Ø16 | 1481 | 60 Ø16 | 1640 | 10 | 164 | 88 | 171 | ||
| E10.25.1644.00 | 1791 | 1536 | 1642 | 1646 | 1708 | 54 Ø22 | 1580 | 54 Ø22 | 1760 | 10 | 176 | 88 | 211 | ||
| E10.25.1754.00 | 1901 | 1646 | 1752 | 1756 | 1818 | 60 Ø22 | 1690 | 60 Ø22 | 1870 | 10 | 187 | 88 | 225 | ||
| E10.25.1904.00 | 2073 | 1796 | 1902 | 1906 | 1968 | 64 Ø22 | 1840 | 64 Ø22 | 2030 | 14 | 145 | 124 | 270 |
Interchange information
LYRA E10.25 series slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | TORRIANI | INA | ROTH ERDE | IMO | ISB | SKF / RKS |
| E10.25.0455.00 | 11.25.0455/1-04110 | EB1.25.0455.201-2STPN | ||||
| E10.25.0555.00 | 11.25.0555/1-04120 | EB1.25.0555.201-2STPN | ||||
| E10.25.0655.00 | 11.25.0655/1-04130 | EB1.25.0655.201-2STPN | ||||
| E10.25.0755.00 | E 900 25 00 B | VSA 25 0755 N | 11.25.0755/1-04140 | EB1.25.0755.201-2STPN | ||
| E10.25.0855.00 | E 1000 25 00 B | VSA 25 0855 N | 061.25.0855.575.11.1403 | 11.25.0855/1-03110 | EB1.25.0855.201-2STPN | |
| E10.25.0955.00 | E 1100 25 00 B | VSA 25 0955 N | 061.25.0955.575.11.1403 | 11.25.0955/1-03120 | EB1.25.0955.201-2STPN | |
| E10.25.1055.00 | E 1200 25 00 B | VSA 25 1055 N | 061.25.1055.575.11.1403 | 11.25.1055/1-03130 | EB1.25.1055.201-2STPN | |
| E10.25.1155.00 | 061.25.1155.575.11.1403 | 11.25.1155/1-03140 | EB1.25.1155.201-2STPN | |||
| E10.25.1255.00 | 061.25.1255.575.11.1403 | 11.25.1255/1-03150 | EB1.25.1255.201-2STPN | |||
| E10.25.1355.00 | 061.25.1355.575.11.1403 | 11.25.1355/1-03160 | EB1.25.1355.201-2STPN | |||
| E10.25.1455.00 | 061.25.1455.575.11.1403 | 11.25.1455/1-03170 | EB1.25.1455.201-2STPN | |||
| E10.25.1204.00 | EB1.25.1204.400-1SPPN | RKS.061.25.1204 | ||||
| E10.25.1314.00 | EB1.25.1314.400-1SPPN | RKS.061.25.1314 | ||||
| E10.25.1424.00 | EB1.25.1424.400-1SPPN | RKS.061.25.1424 | ||||
| E10.25.1534.00 | EB1.25.1534.400-1SPPN | RKS.061.25.1534 | ||||
| E10.25.1644.00 | EB1.25.1644.400-1SPPN | RKS.061.25.1644 | ||||
| E10.25.1754.00 | EB1.25.1754.400-1SPPN | RKS.061.25.1754 | ||||
| E10.25.1904.00 | EB1.25.1904.400-1SPPN | RKS.061.30.1904 |
