E10.20 series(in)
Light series, solid ring, external gear, inch sizes

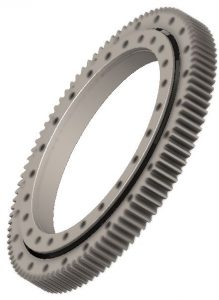

The LYRA E10.20 series mimics the dimension plan of the Kaydon HS6-E.
Series dimensions
Externally toothed four-point contact ball slewing bearing, the size can be customized according to your requirements.
| Outline dimensions | Outer holes | Inner holes | 20 deg stub gear | Weight | |||||||
| LYRA reference | Da | Di | La | na | Li | ni | P | DP | z | Fz Max | |
| in | in | in | in | in | lb.f | lbs | |||||
| E10.20.0411.00 | 19.9 | 11.97 | 18 | 14 | 13.5 | 12 | 19.5 | 4 | 78 | 7095 | 85 |
| E10.20.0541.00 | 25.15 | 17.09 | 23.25 | 18 | 18.5 | 15 | 24.75 | 4 | 99 | 7095 | 108 |
| E10.20.0641.00 | 29.15 | 21.03 | 27.25 | 20 | 22.5 | 18 | 28.75 | 4 | 115 | 7095 | 137 |
| E10.20.0741.00 | 32.9 | 24.97 | 31 | 24 | 26.5 | 18 | 32.5 | 4 | 130 | 7095 | 158 |
| E10.20.0841.00 | 37.2 | 28.9 | 35 | 28 | 30.5 | 20 | 36.67 | 3 | 110 | 9450 | 188 |
| E10.20.0941.00 | 41.2 | 32.84 | 38.88 | 28 | 34.38 | 20 | 40.67 | 3 | 122 | 9450 | 207 |
| E10.20.1091.00 | 46.87 | 38.75 | 44.63 | 32 | 40.25 | 24 | 46.33 | 3 | 139 | 9450 | 237 |
Interchange information
The LYRA E10.20 series slewing bearings can be freely interchanged with the following brands and models.
| LYRA reference | KAYDON | AVON |
| E10.20.0411.00 | HS6 16 E1Z | 716 HA1 |
| E10.20.0541.00 | HS6 21 E1Z | 721 HA1 |
| E10.20.0641.00 | HS6 25 E1Z | 725 HA1 |
| E10.20.0741.00 | HS6 29 E1Z | 729 HA1 |
| E10.20.0841.00 | HS6 33 E1Z | 733 HA1 |
| E10.20.0941.00 | HS6 37 E1Z | 737 HA1 |
| E10.20.1091.00 | HS6 43 E1Z | 743 HA1 |
