truck-mounted cranes and Forestry machinery

truck-mounted cranes and Forestry machinery slew bearings

Series dimensions

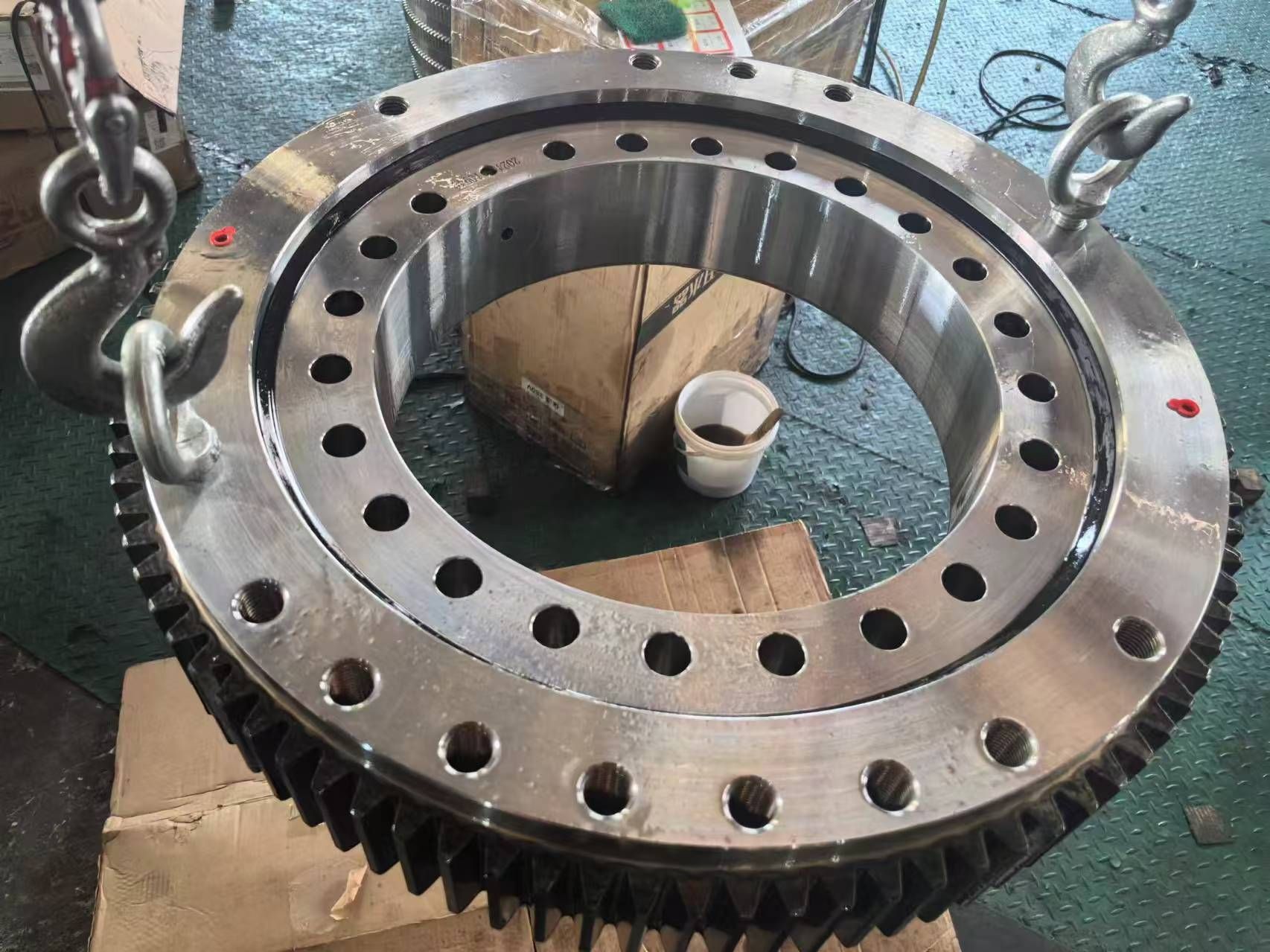

The slewing bearings of truck-mounted cranes are all externally toothed slewing bearings. LYRA is produced and processed according to the dimensions and parameters of slewing bearings from Tadano, Unic, Kanglim, SOOSAN, Aichi and other manufacturers, and can replace original parts. are all externally toothed slewing bearings. LYRA is produced and processed according to the dimensions and parameters of slewing bearings from Tadano, Unic, Kanglim, SOOSAN, Aichi and other manufacturers, and can replace original parts.

Forestry machinery slewing bearings are slewing bearings used in special industries. LYRA is produced and processed with reference to the dimensions and parameters of slewing bearings from John Deere and other manufacturers, and can replace original parts.

The download center has the dimensions and parameters of some types of bearings. If you do not have the model you require, please contact LYRA

Go to the download center

汽车吊回转支承
Machine Type	OUTLINE DIMENSIONS			OUTER RING			INNER RING			TEETH NO	Weight
Machine Type	D_a	d_i	H	H_o	n_a	B_o	H_i	n_i	B_i	Z₂	KG
tadano z 300	456	240	76	66	10	M18	54	19	φ20	74	42
unic 330	456	240	76	66	11	M16	54	19	φ20	74	42
JET 35	460	260	84	70	14	φ18	64	17	φ18	90	46
Kato 45	522	280	81	70	9	M20	58	23	φ21	85	65
unic 500	546	295	78.5	71	14	M18	61	23	φ22	89	71
kanglim 1256	594	340	104	89	14	M20	87	23	φ21	97	110
HTS1756	600	352	100	85	12	M22	79	23	φ22	98	108
soosan 736	600	352	99	84	12	M22	79	23	φ23	98	108
SS1926	612	369	90	75	16	M20	67	23	φ21	100	103
CSS176M	624	370	105	90	18	M20	88	23	φ22	102	110
SOOSAN 746	660	430	100	84	15	M22	79	23	φ23	108	105
Kanglim ks2056	660	430	105	85	14	M22	80	23	φ23	107	105
SOOSAN 915m	736	495	95	75	21	M22	75	29	φ23	90	115
Hiab 190	732	506	85	70	26	M20	65	16	φ22	120	97
Aichi 502	816	600	70	59	24	φ19	65	22	M18	134	98
AICHI 507	816	600	66	58	24	φ19	60	26	M18	134	96
DT600	816	608	58	50	30	φ18	50	29	M18	134	80
Terex BH308475	818	560	94	77.5	20	φ24	75.5	24	φ24	111	140
AICHI 705	863	675	82	58	24	M18	64	24	φ19	142	93
Soosan 1015	900	640	84	72	25	M22	68	24	φ23	82	152
SOOSAN SCS1616	976	700	95	85	26	M22	81	35	φ22	96	208
SR250	1408	1110	80.5	70	48	φ26	70	44	φ26	113	280
KR35H	1410	1100	95	80	42	φ26.5	80	48	φ26	112	330
TR250-M5	1415	1143	95	80	47	φ24	76	48	φ24	116	295
TG500	1530	1164	122	108	39	φ26	110	40	φ26	118	585
